IP-033 | Hammer Mill HM.02
IP-033 | Hammer Mill HM.02
License price on request
Request License / Engineering
License scope and fee are defined on an asset- or project-specific basis.
The IP ID is passed to the inquiry. License scope and fee are defined on a project-specific basis.
Compact 3 kW hammer mill for grain, feed raw materials and selected residual materials
The HM.02 is a compact hammer mill for the size reduction of various raw materials. The documented series machine is designed with a robust grinding chamber, interchangeable screen inserts, and on-site aspiration. The machine can be used for grain, millet, wheat, beans, and wood residues.
Technical specifications
- Connected load: 3 kW
- Rotor Ø: 110 mm
- Rotor speed: 1,500 rpm
- Beater width: 3 mm
- Screen perforation: customer-specific
- Extraction required: yes, on-site
- Aspiration reference: 3,700 l/min at 24,000 Pa negative pressure
- Machine dimensions according to technical data field: L 550 × W 512 × H 366 mm
- Base plate: 550 × 552 mm
- Weight: approx. 75 kg
- Surface: blasted
- Color: RAL 5009
Design features
- Stable welded steel construction of the grinding chamber
- Rotor assembly Ø110 mm
- Interchangeable screen inserts and screen baskets
- Simplified accessibility for maintenance and replacement of wear parts

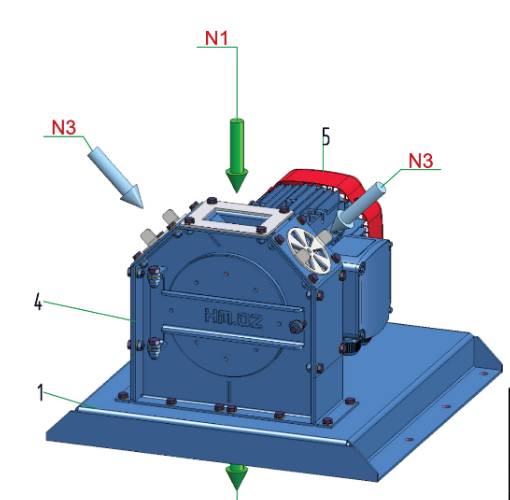

- Material inlet N1, material outlet N2, and air supply N3
- Aspiration connection dependent on application
- Belt magnetic separator and feeder can be integrated
Technical Deliverables
Technical Deliverables

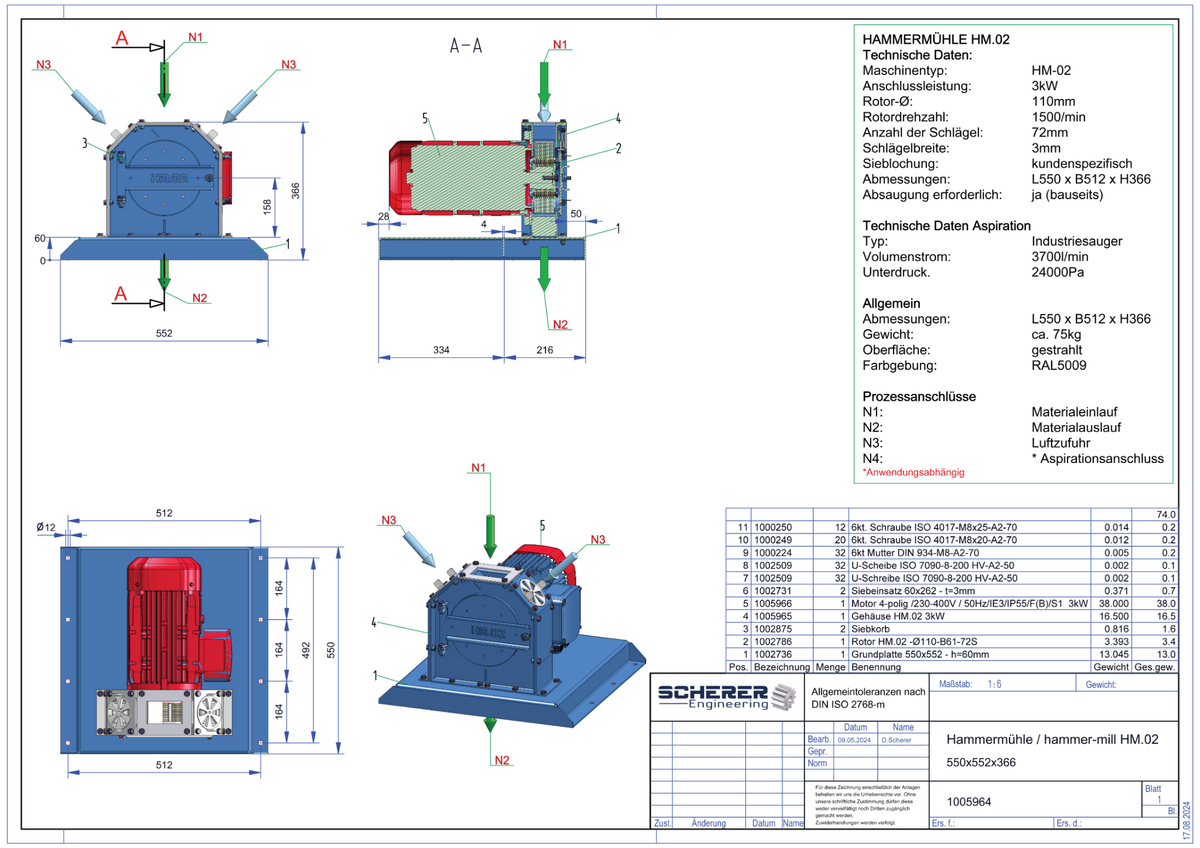

• Technical overview and assembly drawing, reference 1005964, including parts list
• Operating manual for the SEHM.02 series hammer mill with operation, maintenance, troubleshooting, and spare parts information
• Documented technical product data from the Engineering IP Portfolio DN-002647
• Product-related license and usage documentation
• Additional CAD/STEP data, production drawings, detailed parts lists, or native design data only if expressly agreed upon in the specific scope of the license
• Operating manual for the SEHM.02 series hammer mill with operation, maintenance, troubleshooting, and spare parts information
• Documented technical product data from the Engineering IP Portfolio DN-002647
• Product-related license and usage documentation
• Additional CAD/STEP data, production drawings, detailed parts lists, or native design data only if expressly agreed upon in the specific scope of the license
Technical Documentation
Technical Documentation
- IP-ID
- IP-033
- Drawing reference
- 1005964
- HELiOS / document reference
- Drawing 1005964; Operating manual Doku_SEHM.02_DE; Engineering IP Portfolio DN-002647
- Product family
- Hammer Mills
- Category
- Size Reduction / Grinding Technology
- Technology maturity
- Industrial Application
- Development status
- Production Machine / Existing Design
License & Usage Rights
License & Usage Rights
Use is permitted exclusively on the basis of a license agreement. Unless otherwise agreed, the standard basis is a non-exclusive, perpetual license to use the asset. The permitted scope may include project execution, quotation preparation, development of technical solutions and further development of existing systems. Manufacturing, series-production, disclosure, sublicensing and other commercial exploitation rights for the respective asset are defined expressly in the specific license agreement. The license fee is determined on an asset- or project-specific basis according to the scope of rights and commercial use.
