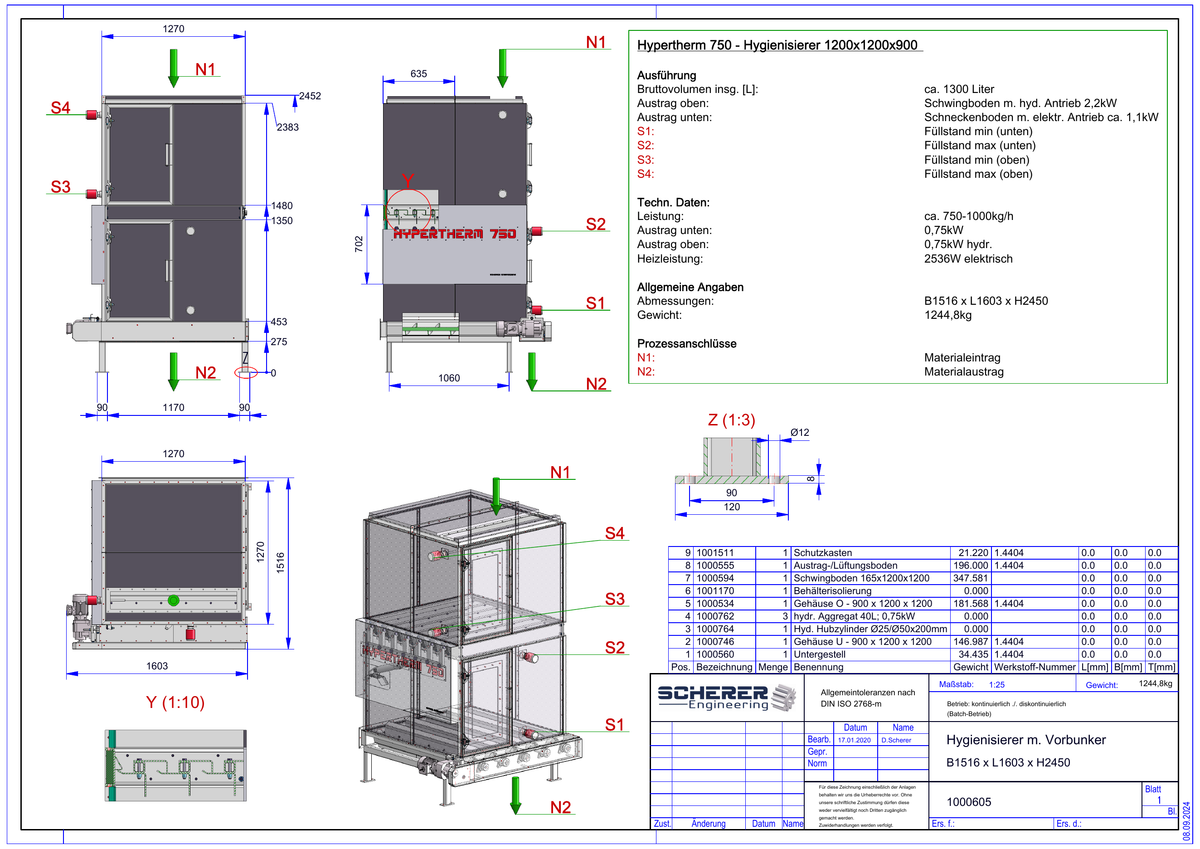

• IP-001 Hypertherm 750 - vollständige Zeichnung 1000605

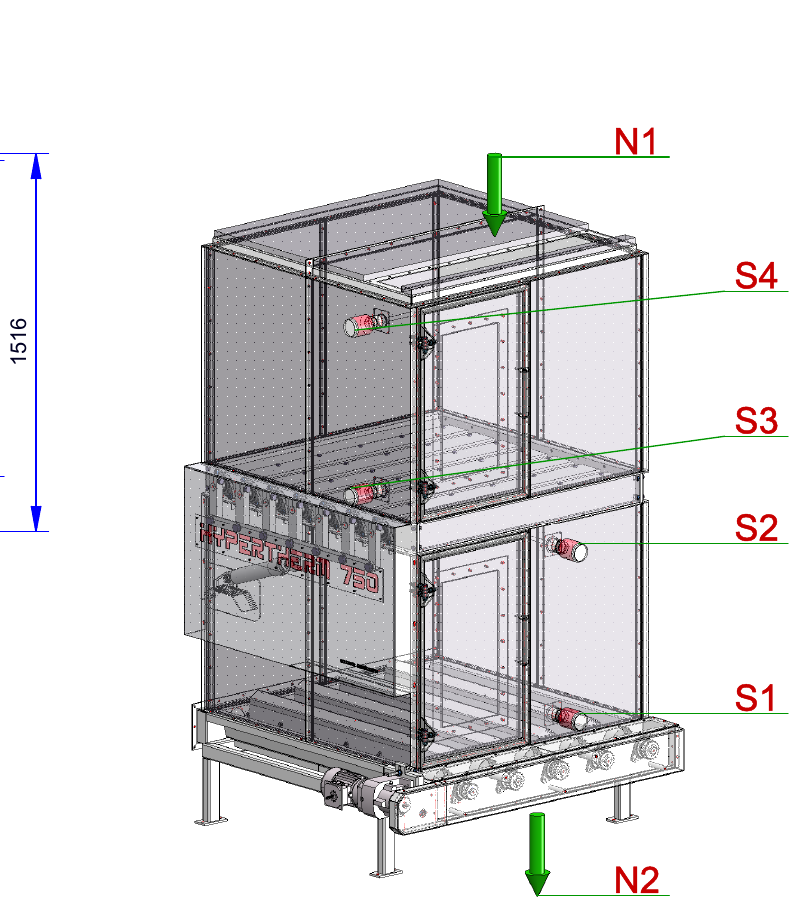

  • IP-001 Hypertherm 750 - isometrische Ansicht
1 2

IP-001 | Hypertherm 750 – Hygienizer with Pre-Hopper

IP-001 | Hypertherm 750 – Hygienizer with Pre-Hopper

License price on request
License scope and fee are defined on an asset- or project-specific basis.
Request License / Engineering

The IP ID is passed to the inquiry. License scope and fee are defined on a project-specific basis.

Batch hygienization system for pelleted and granulated bulk materials

The Hypertherm 750 is designed as a process engineering hygienization module for integration into pelleting and processing plants. The system operates in batch mode and combines an integrated surge bin with upper and lower discharge systems.

Key technical data

  • Capacity: approx. 750–1,000 kg/h
  • Operating mode: batch operation
  • Gross volume: approx. 1,300 l
  • Heating capacity: approx. 2.536 kW electric
  • Dimensions: approx. W 1,516 × L 1,603 × H 2,450 mm
  • Weight: approx. 1,245 kg

Design features

  • integrated surge bin
  • material inlet N1 / material outlet N2
  • upper and lower discharge system
  • batch hygienization with complete batch separation
  • intended for integration into pelleting and processing plants
  • suitable for pelleted or granulated biomass and organic bulk materials

Technical Deliverables

• Technical overview and assembly drawing, reference 1000605
• Documented technical product data from the Engineering IP Master
• Product-related license and usage documentation
• Additional CAD/STEP data, production drawings, parts lists, or native design data only to the extent explicitly agreed upon in the specific scope of the license

Technical Documentation

IP-ID
IP-001
Drawing reference
1000605
HELiOS / document reference
Drawing 1000605; Engineering Asset Database DN-002646; Shop Revision REV01
Product family
Hygienization
Category
Process Engineering / Hygienization
Technology maturity
Industrial Application
Development status
Original Development

License & Usage Rights

Use is permitted exclusively on the basis of a license agreement. Unless otherwise agreed, the standard basis is a non-exclusive, perpetual license to use the asset. The permitted scope may include project execution, quotation preparation, development of technical solutions and further development of existing systems. Manufacturing, series-production, disclosure, sublicensing and other commercial exploitation rights for the respective asset are defined expressly in the specific license agreement. The license fee is determined on an asset- or project-specific basis according to the scope of rights and commercial use.
