IP-005 | Pellet Mill MP270.50
IP-005 | Pellet Mill MP270.50
License price on request
Request License / Engineering
License scope and fee are defined on an asset- or project-specific basis.
The IP ID is passed to the inquiry. License scope and fee are defined on a project-specific basis.
Compact ring die pellet mill for biomass, wood pellets, feed, and organic residues

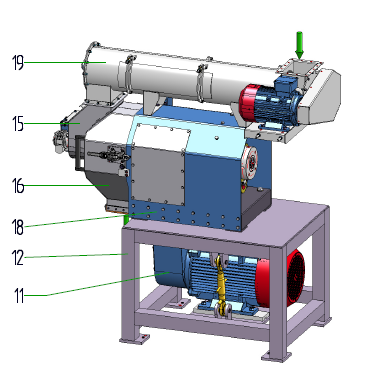

The MP270.50 is designed as a compact pellet mill with a ring die, two press rollers, an integrated conditioner, and a force feeder. The machine serves as a standalone pelleting stage for small to medium-sized production and processing plants.
Technical specifications
- Main drive: 22 kW
- Conditioner: 2.2 kW
- Force feeder: 0.18 kW
- Ring die: inner Ø 270 mm
- Working width: 50 mm
- Press rollers: 2 pieces
- Power transmission: 8 V-belts
- Lubrication: Grease
- Dimensions: L 1,629 × W 820 × H 1,716 mm
- Weight: approx. 1,400 kg
Design features
- Compact ring die design
- Two press rollers
- Integrated conditioner
- Integrated force feeder
- Material inlet N1 and material outlet N2
- Designed for biomass, wood pellet, feed, and residue applications
Technical Deliverables
Technical Deliverables

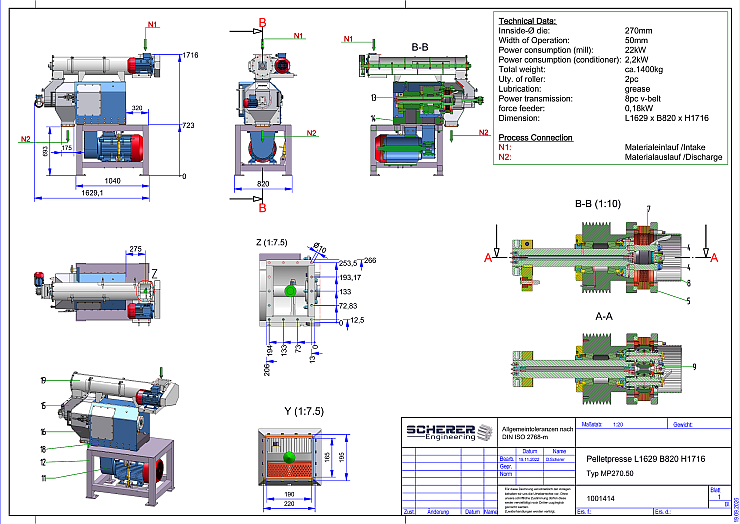

• Technical overview and dimensioned drawing, reference 1001414
• Documented technical product data from the Engineering IP Master
• Product-related license and usage documentation
• Additional CAD/STEP data, production drawings, parts lists, or native design data only if expressly agreed upon in the specific scope of the license
• Documented technical product data from the Engineering IP Master
• Product-related license and usage documentation
• Additional CAD/STEP data, production drawings, parts lists, or native design data only if expressly agreed upon in the specific scope of the license
Technical Documentation
Technical Documentation
- IP-ID
- IP-005
- Drawing reference
- 1001414
- HELiOS / document reference
- Drawing 1001414; Engineering Asset Database DN-002646; Shop Revision REV01
- Product family
- Pellet Mills
- Category
- Pelletizing
- Technology maturity
- Industrial Application
- Development status
- Original Development
License & Usage Rights
License & Usage Rights
Use is permitted exclusively on the basis of a license agreement. Unless otherwise agreed, the standard basis is a non-exclusive, perpetual license to use the asset. The permitted scope may include project execution, quotation preparation, development of technical solutions and further development of existing systems. Manufacturing, series-production, disclosure, sublicensing and other commercial exploitation rights for the respective asset are defined expressly in the specific license agreement. The license fee is determined on an asset- or project-specific basis according to the scope of rights and commercial use.
Share
Request License or Engineering
Would you like to license, manufacture or adapt this Engineering Asset to your application? Include the IP ID, intended application and required scope of use in your inquiry.
