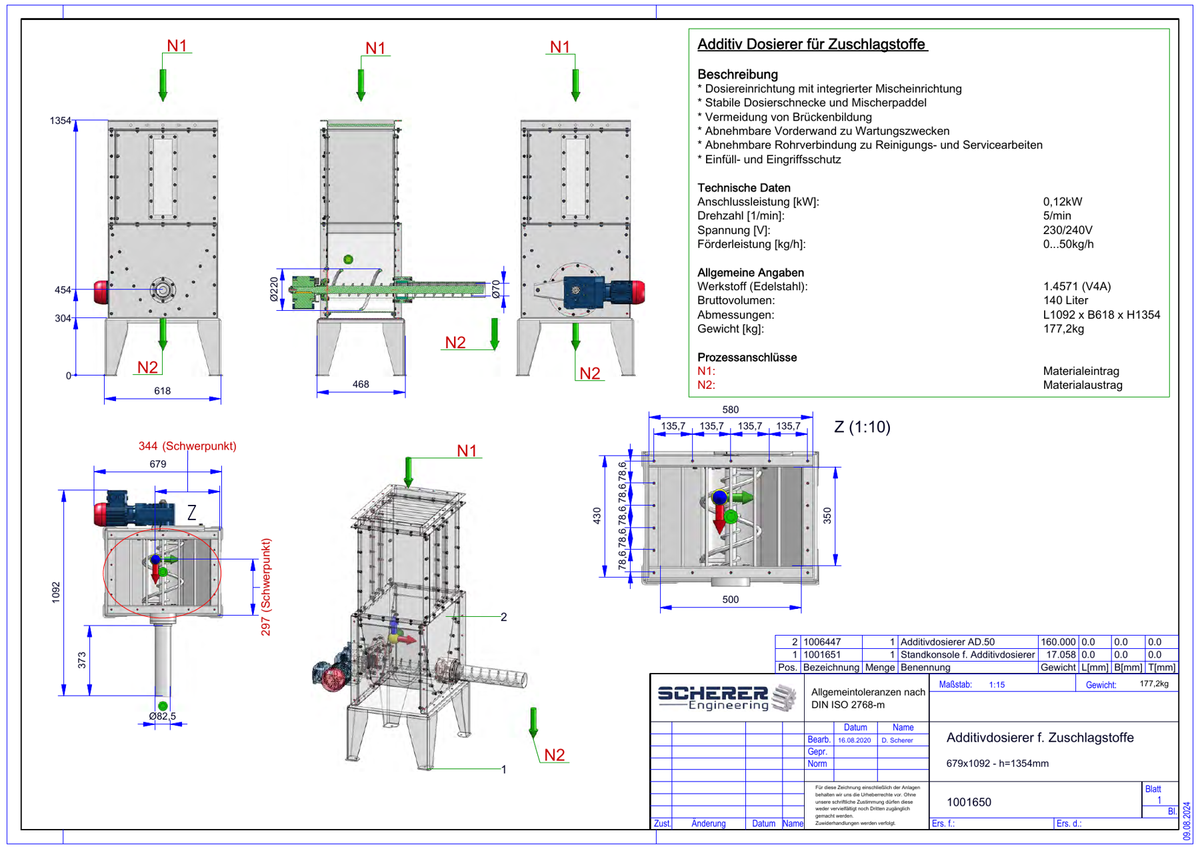

• IP-012 Additivdosierer AD.50 - technische Übersichtszeichnung

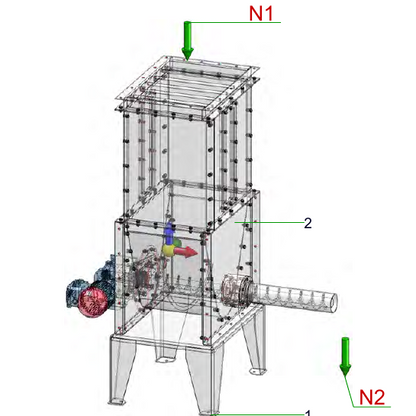

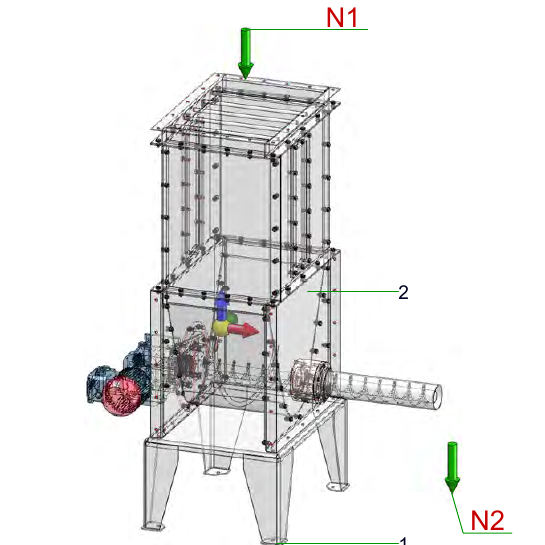

  • IP-012 Additivdosierer AD.50 - technische Isometrie

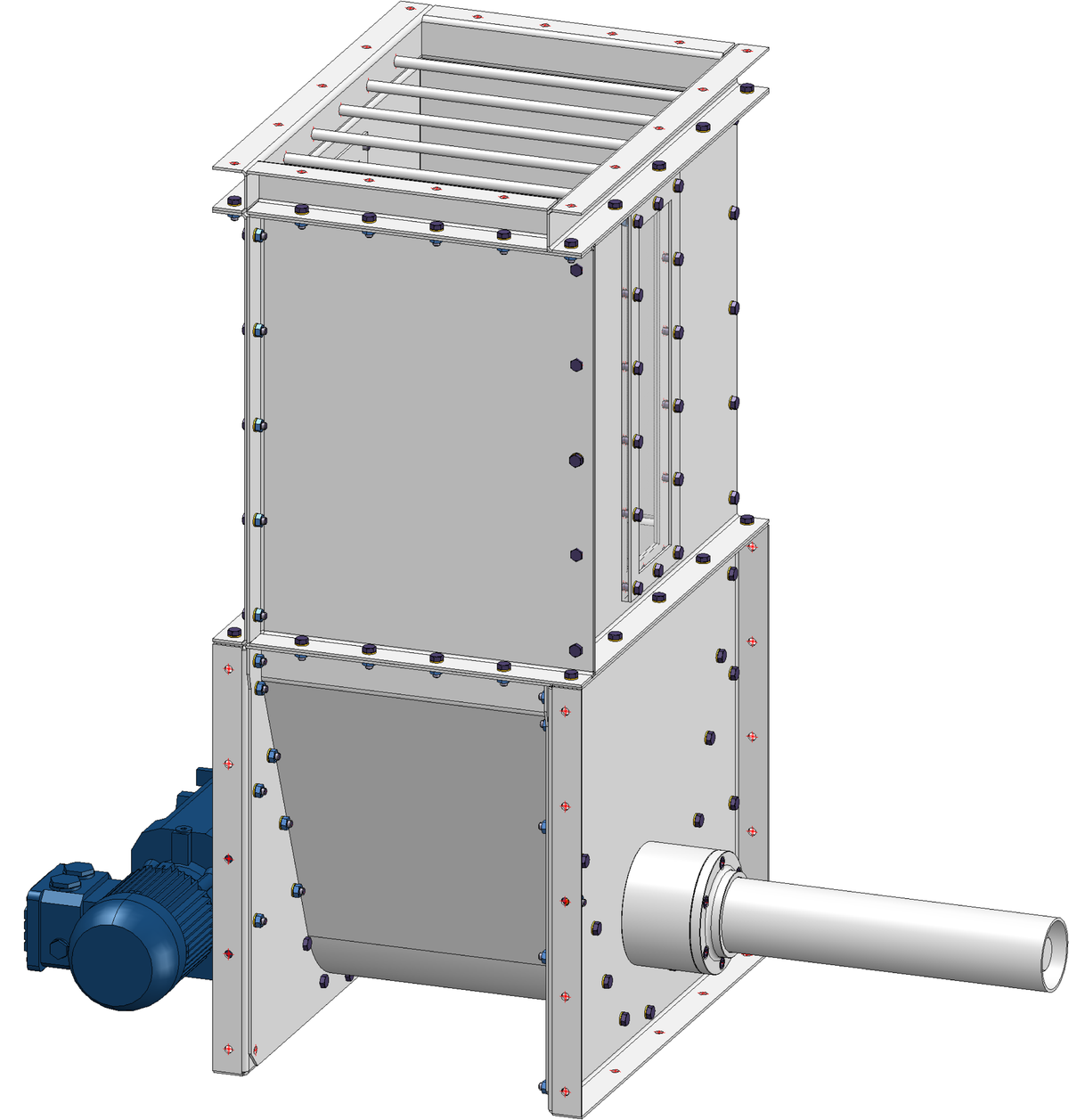

  • IP-012 Additivdosierer AD.50 – technische Baugruppenansicht
1 3

IP-012 | Additive Dosing Unit AD.50

IP-012 | Additive Dosing Unit AD.50

License price on request
License scope and fee are defined on an asset- or project-specific basis.
Request License / Engineering

The IP ID is passed to the inquiry. License scope and fee are defined on a project-specific basis.

Dosing and mixing device for additives

The AD.50 is designed as a compact dosing unit for the controlled addition of additives. The assembly combines a dosing screw and a mixing device in a maintenance-friendly stainless steel housing.

Technical specifications

  • Conveying capacity: 0–50 kg/h
  • Connected load: 0.12 kW
  • Speed: 5 rpm
  • Voltage: 230/240 V
  • Gross volume: 140 l
  • Material: Stainless steel 1.4571 (V4A)
  • Dimensions: L 1092 × W 618 × H 1354 mm
  • Weight: approx. 177.2 kg

Design features

  • integrated dosing and mixing device
  • robust dosing screw and mixing paddle
  • design measures to prevent bridging
  • removable front panel for maintenance
  • removable pipe connection for cleaning and service
  • filling and intervention protection

Technical Deliverables

• Technical overview and assembly drawing, reference 1001650
• Documented technical product data from the Engineering IP Portfolio DN-002647
• Product-related license and usage documentation
• Additional CAD/STEP data, production drawings, parts lists, or native design data only if expressly agreed upon in the specific scope of the license

Technical Documentation

IP-ID
IP-012
Drawing reference
1001650
HELiOS / document reference
Drawing 1001650; Engineering IP Portfolio DN-002647
Product family
Dosing & Additives
Category
Dosing and Mixing Technology
Technology maturity
Industrial Application
Development status
Original Development
