Heavy-duty scraper chain conveyor for wet biomass and demanding recycling applications
The TKF.700.P is designed as a robust armored or scraper chain conveyor for difficult-to-flow, moist, and high-wear bulk materials. The documented design utilizes a double-strand round steel link chain, modular conveyor troughs, and a wear-resistant floor for industrial material handling tasks.
Technical Specifications
- Design: 2-strand conveyor
- Chain: Round steel link chain
- Conveying speed: approx. 0.2–0.5 m/s
- Conveyor length (reference design): approx. 20.2 m
- Conveyor channel: W 670 × H 550 mm
- Conveyor troughs: modular, 500 / 1,000 / 2,000 mm
- Wear liner: HARDOX
- Reference feed material: up to approx. 70% H₂O
- Reference piece length: up to approx. 150 mm
- Total weight (reference design): approx. 3,600 kg
Design Features
- modular design with drive, tensioning, and conveying sections
- double-strand round steel link chain for high mechanical loads
- wear-resistant HARDOX floor
- carry-over device and overload flap included
- conveyor angle and pitch customizable per project
- housing design optionally in S355JR or stainless steel 1.4571
- suitable for biomass, recycling, and bulk material applications
Technical Deliverables
Technical Deliverables

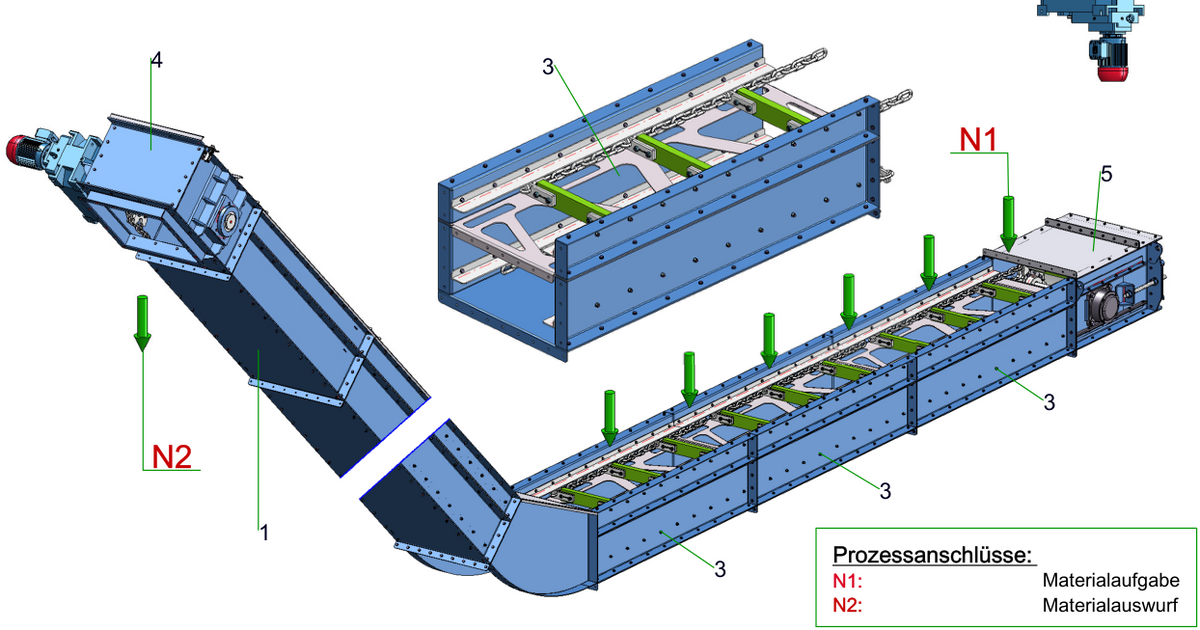

• Technical overview and assembly drawing, reference 1001768
• Documented technical product data from the Engineering IP Master
• Product-related license and usage documentation
• Further CAD/STEP data, manufacturing drawings, bills of materials, or native design data only to the extent explicitly agreed upon in the specific scope of the license
• Documented technical product data from the Engineering IP Master
• Product-related license and usage documentation
• Further CAD/STEP data, manufacturing drawings, bills of materials, or native design data only to the extent explicitly agreed upon in the specific scope of the license
Technical Documentation
Technical Documentation
- IP-ID
- IP-013
- Drawing reference
- 1001768
- HELiOS / document reference
- Drawing 1001768; Engineering Asset Database DN-002646; Shop Revision REV01
- Product family
- Drag Chain Conveyors
- Category
- Conveying Technology
- Technology maturity
- Industrial Application
- Development status
- Original Development
