IP-026 | Big Bag Unloading Station
IP-026 | Big Bag Unloading Station
License price on request
Request License / Engineering
License scope and fee are defined on an asset- or project-specific basis.
The IP ID is passed to the inquiry. License scope and fee are defined on a project-specific basis.

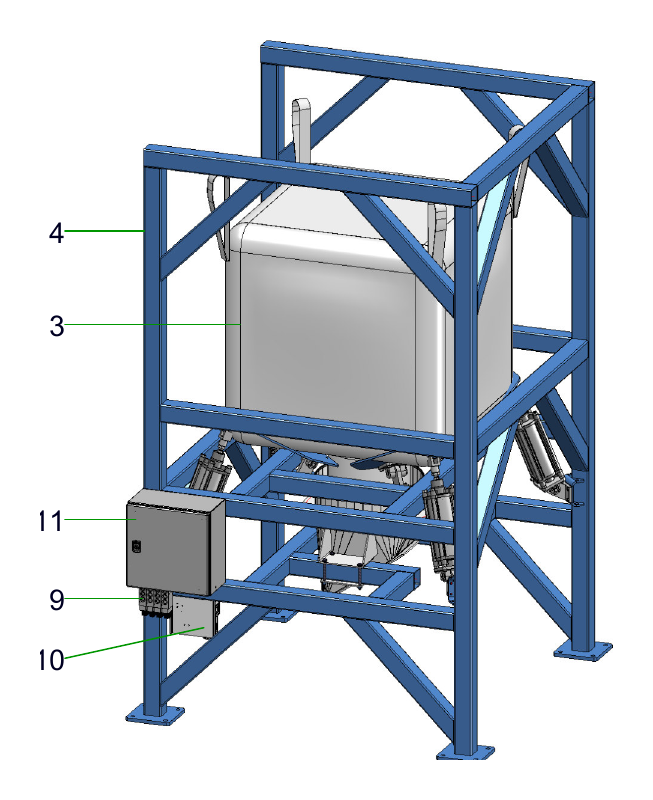

Pneumatically assisted big bag unloading station for free-flowing powders and bulk materials
The big bag unloading station is designed for the controlled discharge of dry, free-flowing powdered materials. Four pneumatically operated discharge aids assist in the material discharge from big bags of up to 1,000 kg and feed the product via a stainless steel outlet into downstream dosing and conveying equipment.
Key technical data
- Big bag weight: max. 1,000 kg
- Big bag size: max. 1,000 × 1,000 × 1,000 mm
- Big bag suspension: 4 loops, reference length 250 mm
- Outlet nozzle: Ø350 mm, length 500 mm
- Discharge aid: 4 pneumatically operated units
- Compressed air: provided by customer, 5–6 bar, dry and oil-free
- Operating voltage: 400 V, 50 Hz
- Control voltage: 24 V DC, generated internally
- Protection class: IP54
- Material in contact with product / not in contact with product: Stainless steel 1.4301
- Dimensions: L 1,500 × W 1,500 × H 2,580 mm
- Weight: approx. 520 kg
Reference material
- Designation: Powdered materials
- Grain size: powdery, free-flowing
- Bulk density: approx. 100–750 kg/m³
- Material condition: dry, non-hygroscopic, non-clumping, non-sticking
- Reference product temperature: 20 °C
Design features
- Welded machine frame for big bags up to 1,000 kg
- Four pneumatic discharge aids with drive cylinders
- Transition Ø465 / Ø350 mm
- Integrated compact control cabinet
- Maintenance unit and 5/2-way valves for pneumatics
- Loading of big bag via customer's forklift
- Suitable for powdered materials, additives, feed and process engineering bulk material applications
Technical Deliverables
Technical Deliverables

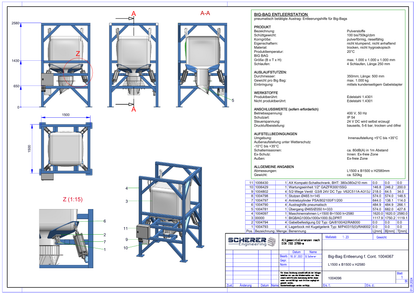

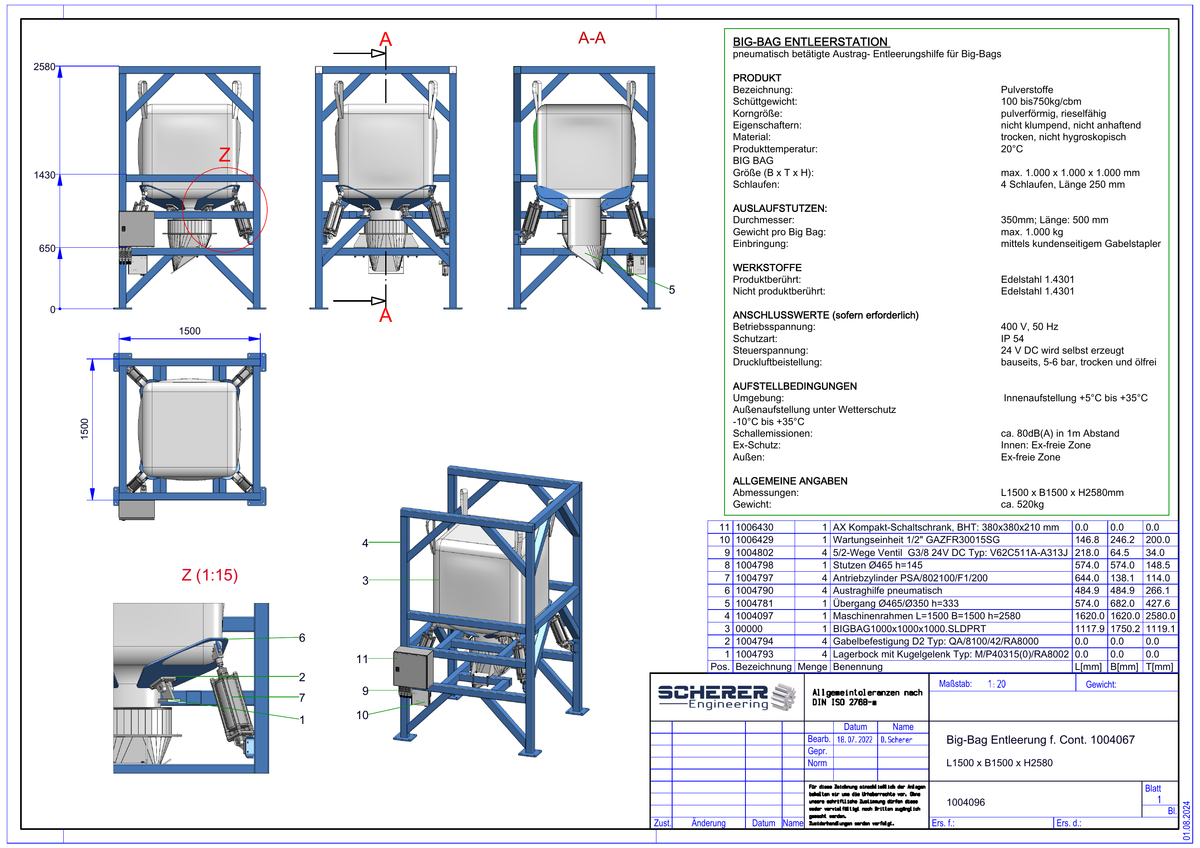

• Technical overview and assembly drawing, reference 1004096
• Documented technical product data from Engineering IP Master DN-002646
• Product-related license and usage documentation
• Further CAD/STEP data, production drawings, parts lists, or native design data only if expressly agreed upon in the specific scope of the license
• Documented technical product data from Engineering IP Master DN-002646
• Product-related license and usage documentation
• Further CAD/STEP data, production drawings, parts lists, or native design data only if expressly agreed upon in the specific scope of the license
Technical Documentation
Technical Documentation
- IP-ID
- IP-026
- Drawing reference
- 1004096
- HELiOS / document reference
- Drawing 1004096; Engineering Asset Database DN-002646; Shop Revision REV01
- Product family
- Big Bag Systems
- Category
- Dosing and Feeding Technology
- Technology maturity
- Industrial Application
- Development status
- Original Development
License & Usage Rights
License & Usage Rights
Use is permitted exclusively on the basis of a license agreement. Unless otherwise agreed, the standard basis is a non-exclusive, perpetual license to use the asset. The permitted scope may include project execution, quotation preparation, development of technical solutions and further development of existing systems. Manufacturing, series-production, disclosure, sublicensing and other commercial exploitation rights for the respective asset are defined expressly in the specific license agreement. The license fee is determined on an asset- or project-specific basis according to the scope of rights and commercial use.
Share
Request License or Engineering
Would you like to license, manufacture or adapt this Engineering Asset to your application? Include the IP ID, intended application and required scope of use in your inquiry.
