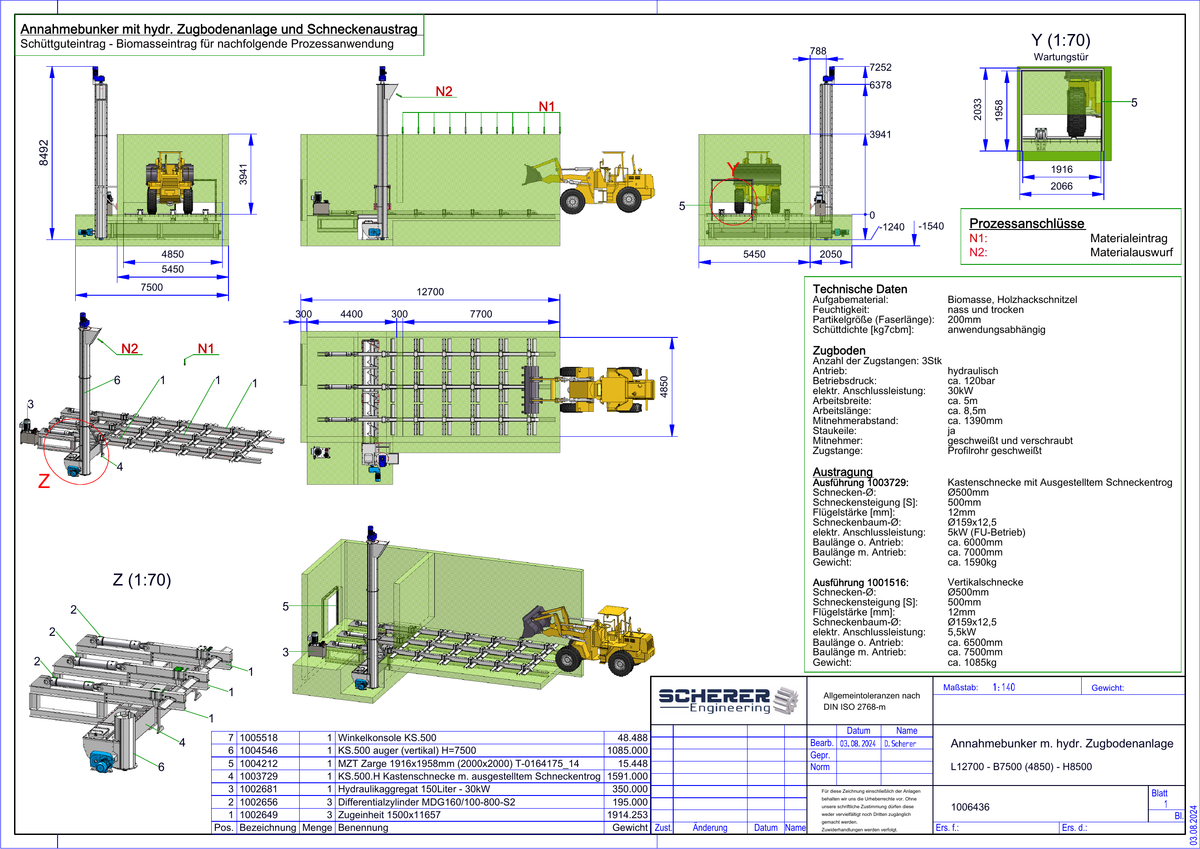

• IP-036 Annahmebunker mit hydraulischem Zugboden und Schneckenaustrag - vollständige Zeichnung 1006436

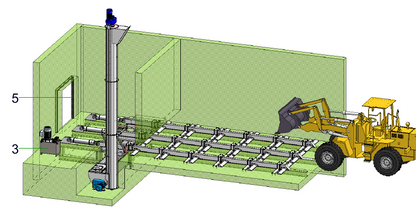

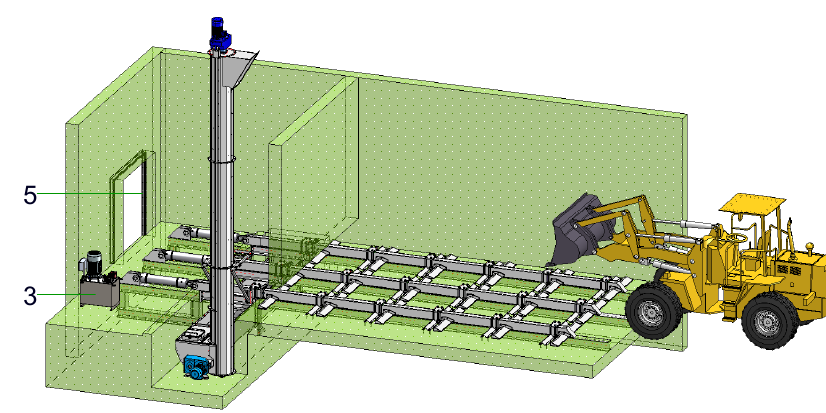

  • IP-036 Annahmebunker mit hydraulischem Zugboden und Schneckenaustrag - isometrische Ansicht
1 2

IP-036 | Receiving Hopper with Hydraulic Moving Floor and Screw Discharge

IP-036 | Receiving Hopper with Hydraulic Moving Floor and Screw Discharge

License price on request
License scope and fee are defined on an asset- or project-specific basis.
Request License / Engineering

The IP ID is passed to the inquiry. License scope and fee are defined on a project-specific basis.

Complete feed module for biomass and wood chips

The receiving bunker is designed as a robust complete module for the intake, intermediate buffering, and continuous discharge of biomass. The system combines a hydraulically operated moving floor with horizontal and vertical screw conveying and can be used as a material input for subsequent processing, grinding, or pelletizing processes.

Key technical data

  • Feed material: biomass, wood chips
  • Material condition: wet and dry
  • Max. particle/fiber length: approx. 200 mm
  • Bulk density: application-dependent
  • Total dimensions reference plant: approx. L 12,700 × W 7,500 × H 8,500 mm

Hydraulic moving floor

  • Number of drive units: 3
  • Drive: hydraulic
  • Operating pressure: approx. 120 bar
  • Hydraulic power: 30 kW
  • Working area: approx. 8.5 × 5.0 m
  • Driver spacing: approx. 1,390 mm
  • Accumulation wedges: included

Screw discharge

  • Screw Ø: 500 mm
  • Screw pitch: 500 mm
  • Flight thickness: 12 mm
  • Screw shaft: Ø 159 × 12.5 mm
  • Horizontal discharge: approx. 5 kW, VFD operation
  • Vertical conveying: approx. 5.5 kW

Design features

  • modular material intake and discharge system
  • hydraulic moving floor for large-volume bulk goods
  • continuous material extraction via KS.500 screws
  • horizontal and vertical conveying stage in one process module
  • suitable for integration prior to shredding, drying, or pelletizing

Technical Deliverables

• Technical overview and assembly drawing, reference 1006436
• Documented technical product data from Engineering Asset Database DN-002646 and Engineering IP Portfolio DN-002647
• PDF documentation available
• STEP data currently pending according to IP-Master
• Product-related license and usage documentation
• Additional CAD data, manufacturing drawings, bills of materials, or native design data only insofar as expressly agreed upon in the specific scope of the license

Technical Documentation

IP-ID
IP-036
Drawing reference
1006436
HELiOS / document reference
Drawing 1006436; Engineering Asset Database DN-002646; Engineering IP Portfolio DN-002647
Product family
Material Receiving & Discharge
Category
Material Receiving / Process Module
Technology maturity
Industrial Application
Development status
System Development

License & Usage Rights

Use is permitted exclusively on the basis of a license agreement. Unless otherwise agreed, the standard basis is a non-exclusive, perpetual license to use the asset. The permitted scope may include project execution, quotation preparation, development of technical solutions and further development of existing systems. Manufacturing, series-production, disclosure, sublicensing and other commercial exploitation rights for the respective asset are defined expressly in the specific license agreement. The license fee is determined on an asset- or project-specific basis according to the scope of rights and commercial use.
