IP-037 | Containerized Pelletizing Plant for Dried Chicken Manure
IP-037 | Containerized Pelletizing Plant for Dried Chicken Manure
License price on request
Request License / Engineering
License scope and fee are defined on an asset- or project-specific basis.
The IP ID is passed to the inquiry. License scope and fee are defined on a project-specific basis.
Containerized process plant for the pelletization of dried chicken manure
The plant is designed as a compact, container-based process line for the processing and pelletization of dried chicken manure. It combines material intake, metal separation, grinding, dosing, pelletization, hygienization, cooling, screening, recirculation, and big-bag filling into a modular plant concept.
Key technical data
- Throughput: approx. 750 kg/h
- Connected load: approx. 60 kW
- Input material: Dried chicken manure with feathers
- Raw material moisture: 8–15%
- Max. particle size: < 50 mm
- Pellet diameter: Ø6 mm
- Dimensions of reference plant: approx. W 2.3 × L 12.0 × H 2.7 m

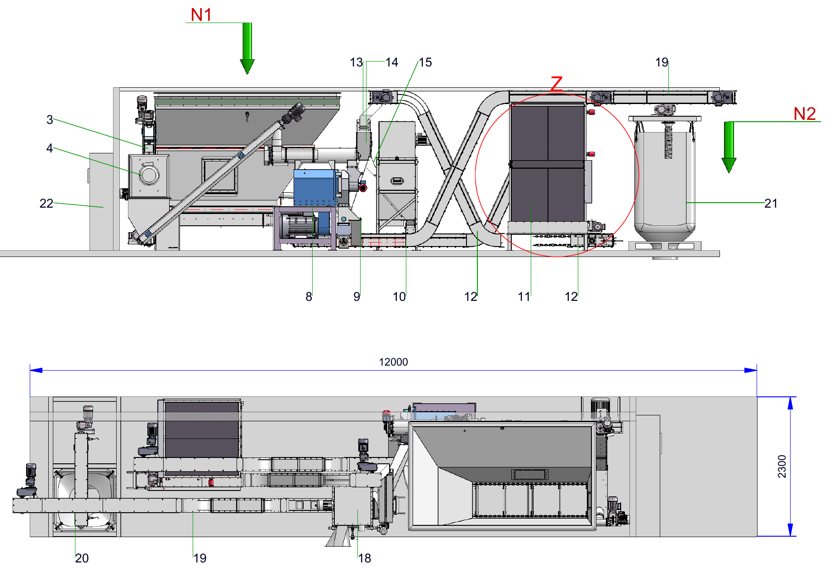

Process stages
- Material intake
- Metal separation
- Grinding
- Dosing and conditioning
- Pelletization
- Hygienization
- Cooling
- Screening
- Recirculation of screen fractions
- Big-bag filling
Design features
- Compact setup in 40-foot container design
- Integrated material and process conveying technology
- Modular construction with defined process interfaces
- Recirculation of rejected and screened fractions
- Suitable for decentralized agricultural and fertilizer applications
Technical Deliverables
Technical Deliverables

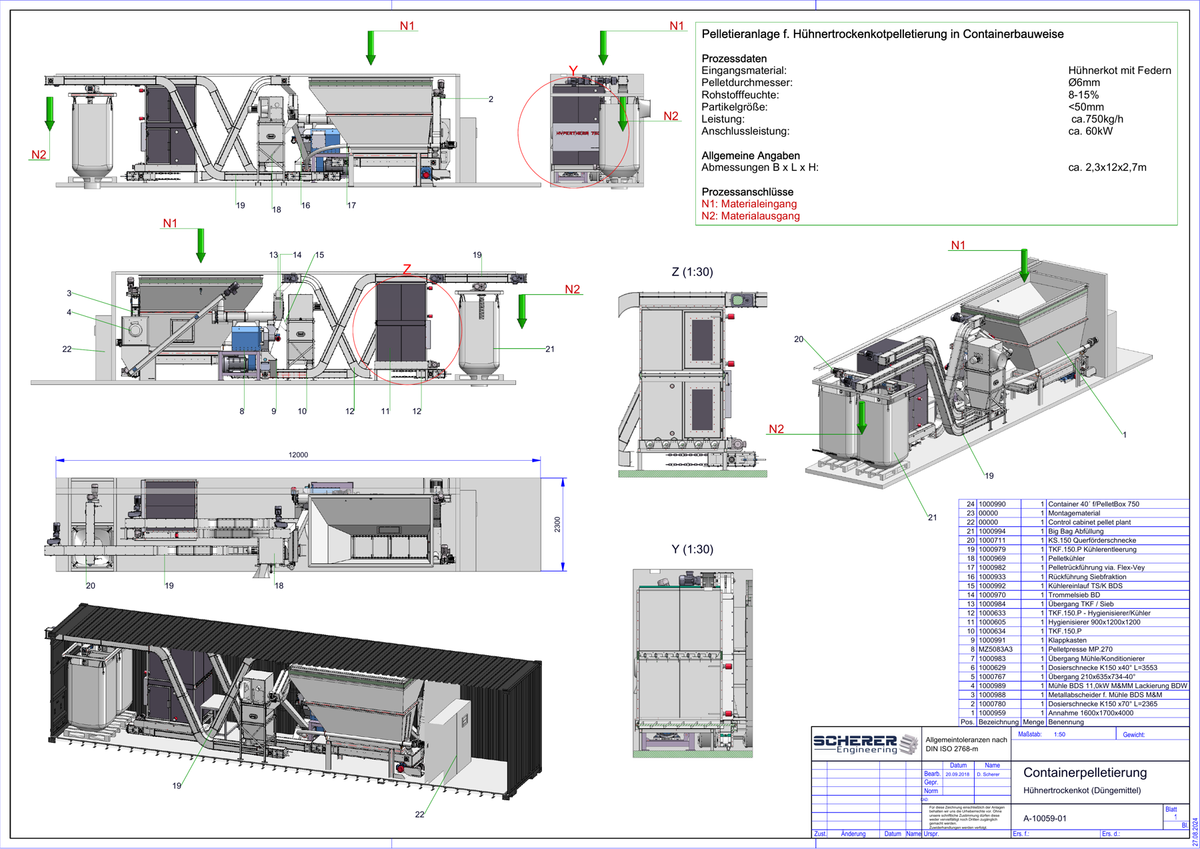

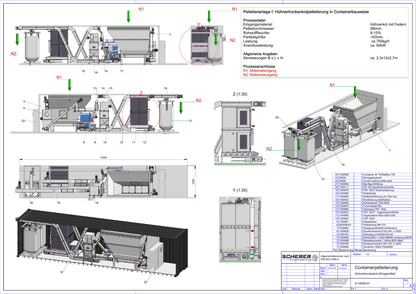

• Technical plant and process overview drawing, reference A-10059-01
• Documented technical product data from Engineering Asset Database DN-002646 and Engineering IP Portfolio DN-002647
• Documented process structure from material receiving to big-bag filling
• PDF documentation available
• STEP data: currently pending according to the IP Master
• Product-related license and usage documentation
• Further CAD data, production drawings, bills of materials, control documentation or native design data only to the extent explicitly agreed upon in the specific scope of the license
• Documented technical product data from Engineering Asset Database DN-002646 and Engineering IP Portfolio DN-002647
• Documented process structure from material receiving to big-bag filling
• PDF documentation available
• STEP data: currently pending according to the IP Master
• Product-related license and usage documentation
• Further CAD data, production drawings, bills of materials, control documentation or native design data only to the extent explicitly agreed upon in the specific scope of the license
Technical Documentation
Technical Documentation
- IP-ID
- IP-037
- Drawing reference
- A-10059-01
- HELiOS / document reference
- Drawing A-10059-01; Engineering Asset Database DN-002646; Engineering IP Portfolio DN-002647
- Product family
- Containerized Plants
- Category
- Containerized Process Plant / Fertilizer Technology
- Technology maturity
- Industrial Application
- Development status
- System Development
License & Usage Rights
License & Usage Rights
Use is permitted exclusively on the basis of a license agreement. Unless otherwise agreed, the standard basis is a non-exclusive, perpetual license to use the asset. The permitted scope may include project execution, quotation preparation, development of technical solutions and further development of existing systems. Manufacturing, series-production, disclosure, sublicensing and other commercial exploitation rights for the respective asset are defined expressly in the specific license agreement. The license fee is determined on an asset- or project-specific basis according to the scope of rights and commercial use.
Share
Request License or Engineering
Would you like to license, manufacture or adapt this Engineering Asset to your application? Include the IP ID, intended application and required scope of use in your inquiry.
